Name: HC100A2-1

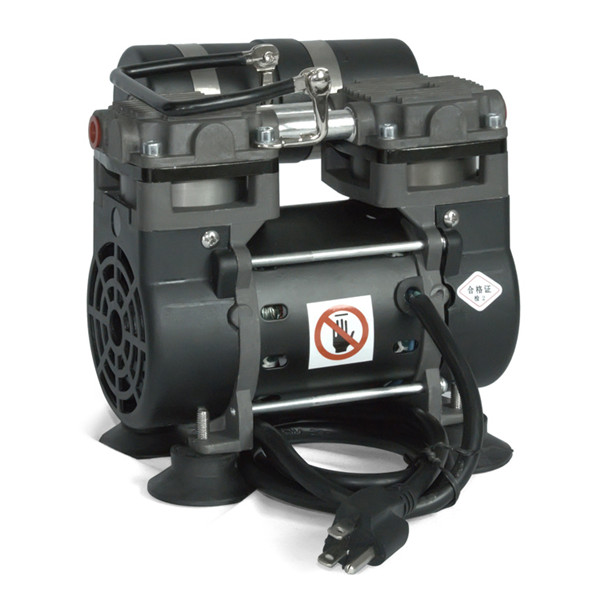

Type: HC100A2-1 OIL FREE VACUUM PUMP

Voltage : 220V 50Hz/110V 60Hz

Vacuumm Pressure:-87Kpa/-97Kpa

Power:≤100W;

Noise : ≤45dB(A) ;

Speed: 1440rpm / 1700rpm ;

Temperature : -5℃-40℃;

Dimension : 180*90*144 mm ;

Net weight : 3.2Kg

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤100W	≤100W	≤120W	≤120W
Vacuum flow rate	50L/min@-87Kpa	25L/min@-97Kpa	60L/min@-87Kpa	30L/min@-97Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤45dB(A)
Temperature	-5℃-40℃
Packing	1 pcs / carton case
Dimension	17695143 mm
Installation size	70*114 mm
Net Weight	3.2 kg
Accessories	With 1x power cord , 4x rubber feet, 1x Air filter , 1x Capacitor ,1x handle

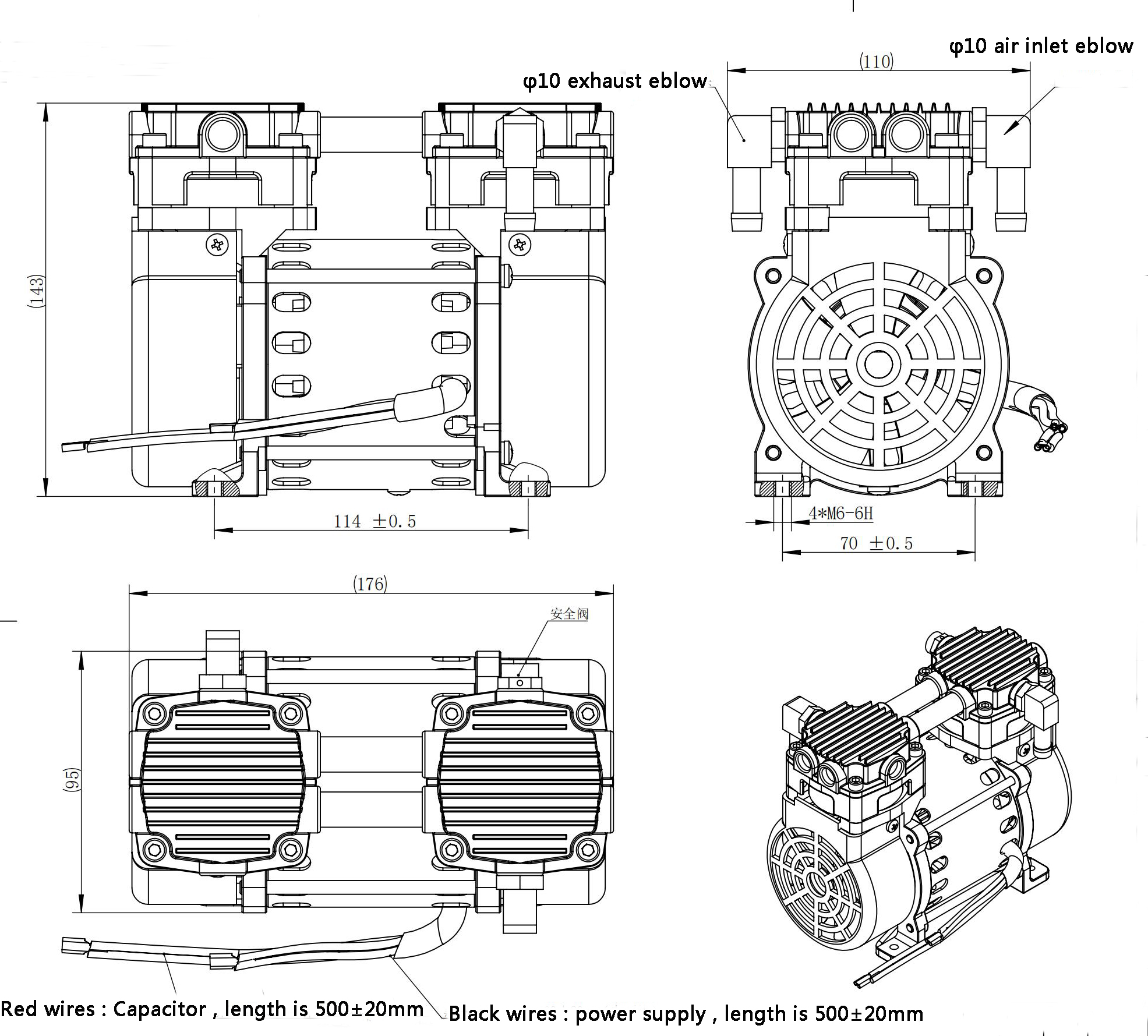

Drawing :

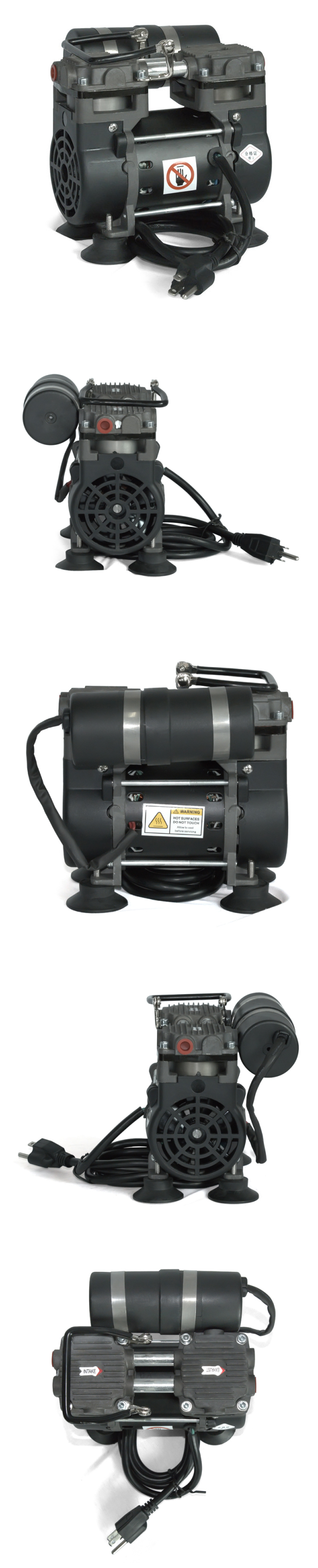

ProduShow :
