Products

Name: HC1100A2

Type: HC1100A2 OIL FREE VACUUM PUMP

Voltage :220V 50Hz/110V 60Hz;

Vacuum pressure: -93Kpa/-98Kpa

Power: ≤500W ;

Noise : ≤60dB(A) ;

Speed: 1440rpm / 1700rpm ;

Temperature : -5℃-40℃ ;

Dimension: 305*156*288 mm ;

Net weight : 17KG

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤500W	≤500W	≤600W	≤600W
Vacuum flow rate	190 L/min@-93Kpa	95 L/min@-98Kpa	200L/min @ -93Kpa	100L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤60dB(A)
Temperature	-5℃-40℃
Packing	1 pcs / carton case
Dimension	305156288 mm
Installation size	127*243 mm
Net Weight	17kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

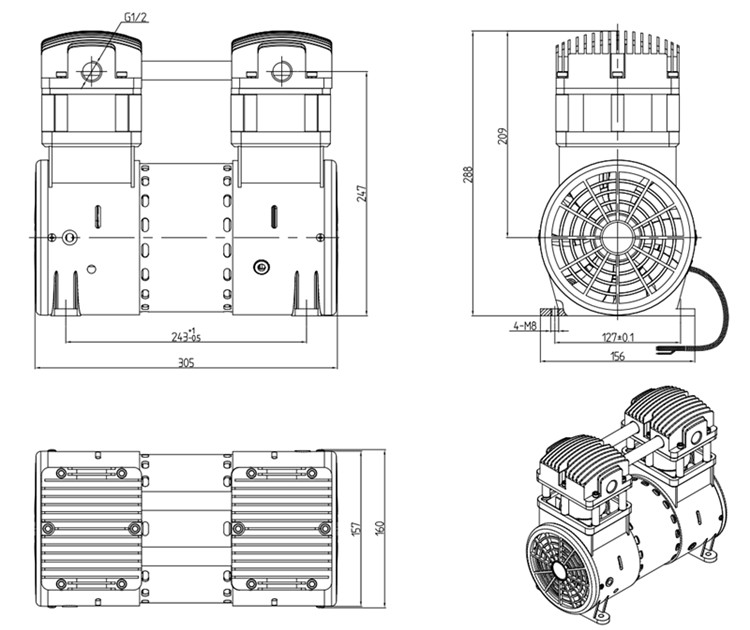

Drawing :

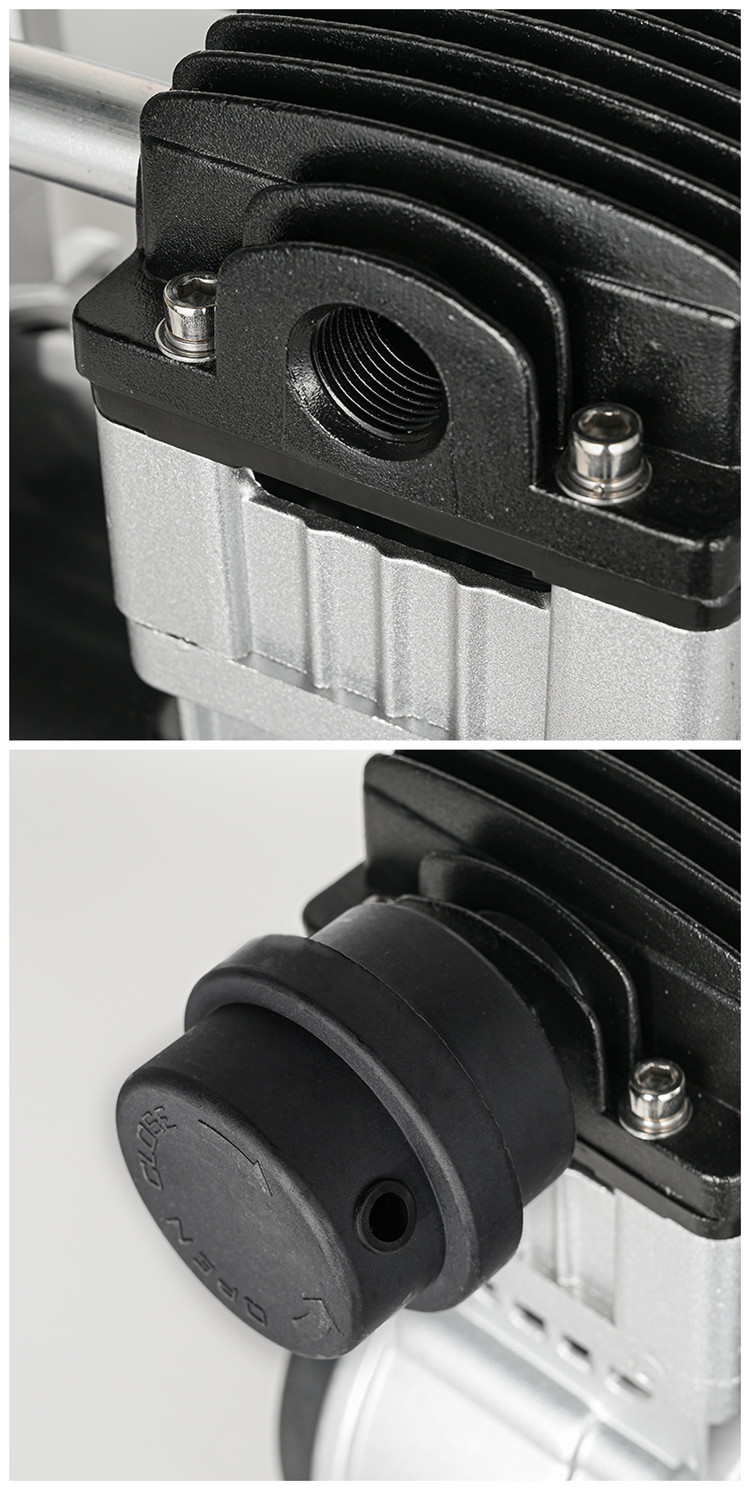

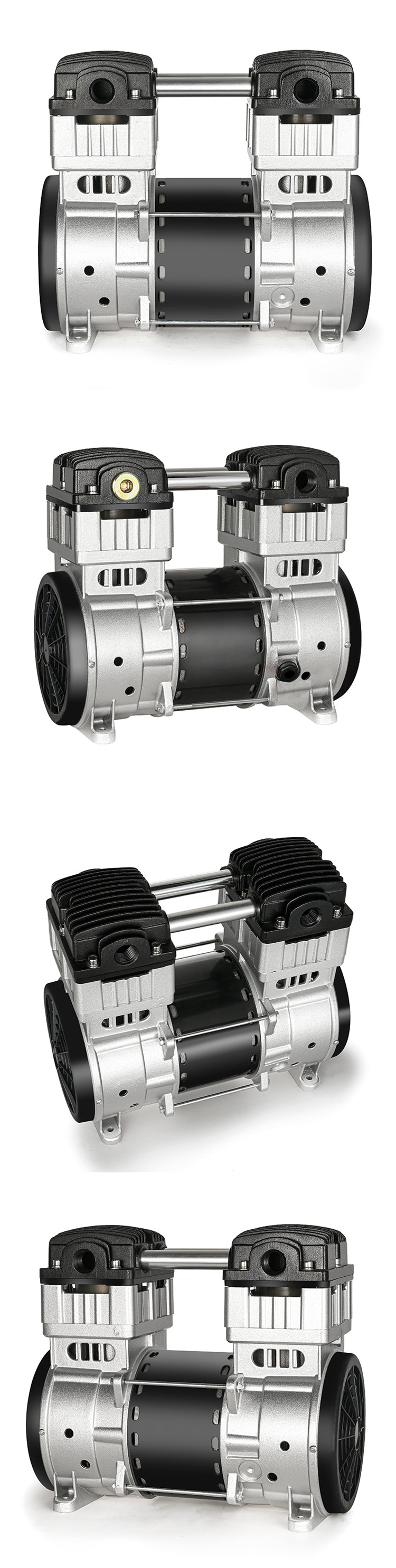

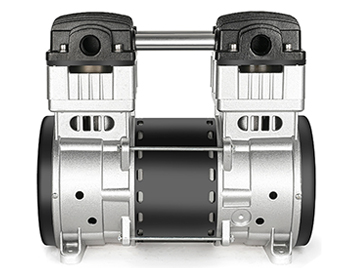

Product Show :
