Location: Home > Products - AC Air Compressor Pump


Products

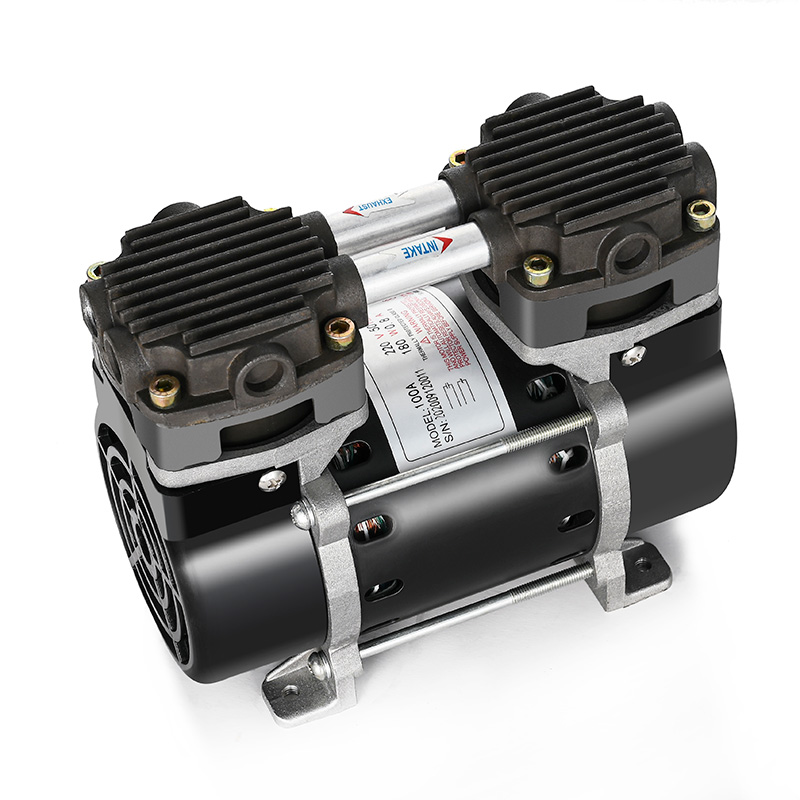

Name: HC100Series AC Oilless Air Pump
Type: HC100 AC Series

Voltage: 110V 60Hz/220V 50Hz


Pressure: 7bar



Noise: ≤52dB(A)


Speed: 1440rpm / 1700rpm


Thermal protector: 135℃



Dimension:198*96*146 mm



Net weight: 3.4kg

Product details

Product parameters:

型号 电压 电机功率 排气量 外形尺寸 安装尺寸 噪音 净重
HC100A-9/7
 220V/50Hz
 235W
38.3 L/min@0 bar
28.3 L/min@2 bar
21.7 L/min@4 bar
14.2 L/min@6 bar
9L/min@7 bar
198*96*146mm
 136*70mm
 ≤52dB(A)
 3.4kg
HC100A-15/7
 220V/50Hz
 259W
45 L/min@0 bar
35 L/min@2 bar
26.7L/min@4 bar
19.2 L/min@6 bar
15L/min@7 bar
198*96*146mm
 136*70mm
 ≤52dB(A)
 3.4kg
HC100B-15/7
(HC100B-50/0)
110V/60Hz
 300W
50 L/min@0 bar
35 L/min@2 bar
26.7L/min@4 bar
19.2 L/min@6 bar
15L/min@7 bar
198*96*146mm
 136*70mm
 ≤52dB(A)
 3.4kg
Drawing:

Product show:
