Products

Name: HC280D Oilless Air Pump

Type: HC280D

Voltage: 12V/24V/48V

Air flow rate: 75L/min

Pressure: 7 bar

Power: 320 W

Noise: ≤58dB(A)

Speed: 1700rpm

Dimension: 242*104*165 mm

Net weight: 6.0 kg

With controller

Product details

Product parameters:

Model	HC280D
Voltage	DC12V /24V /48V
Power	≤320W
Air fiow rate	75 L/min@0 bar
	54 L/min@2 bar
	30 L/min@4 bar
	21 L/min@6 bar
	15 L/min@7 bar
Dimension	242104165 mm
Installation size	83*146 mm
Rated speed	1700rpm
Noise	≤58dB(A)
Packing	1 pcs / carton case
Net weight	6.0 kg
Operating ambient air temperature	-5℃-40℃
Accessories	1x Controller ,4x Rubber Feet ,1x air Filter

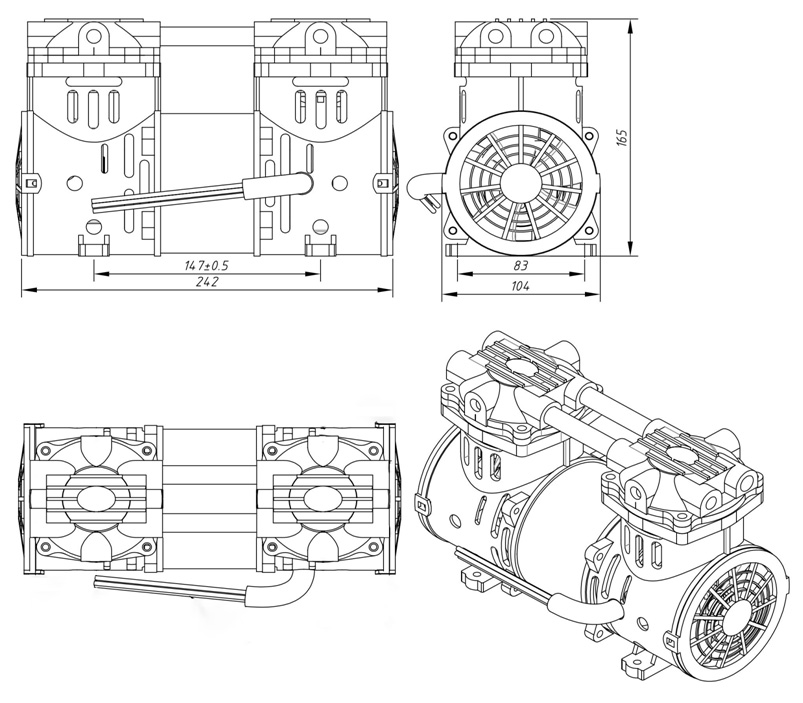

Drawing:

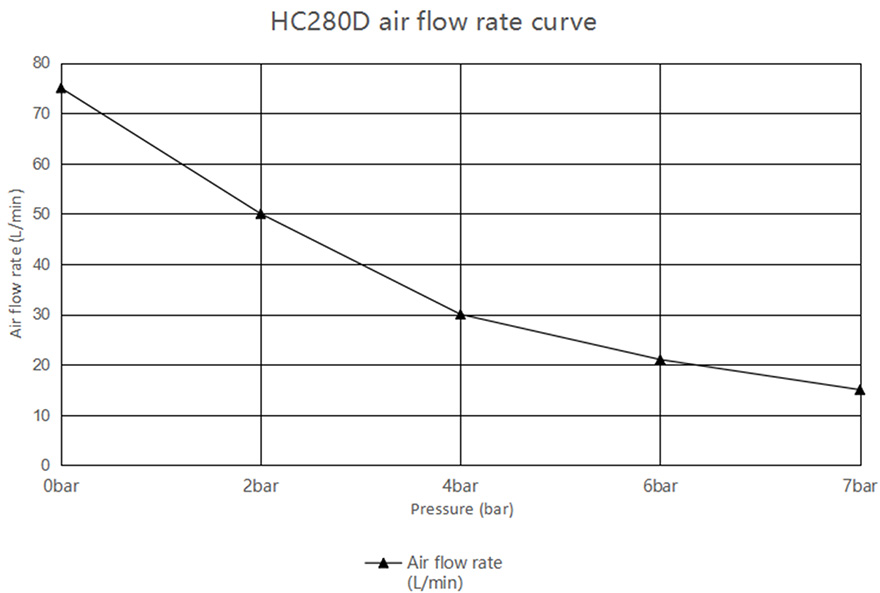

Product flow curve graph:

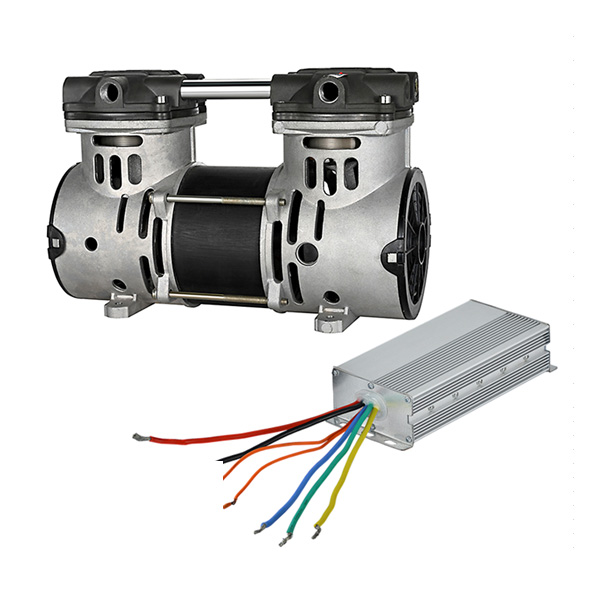

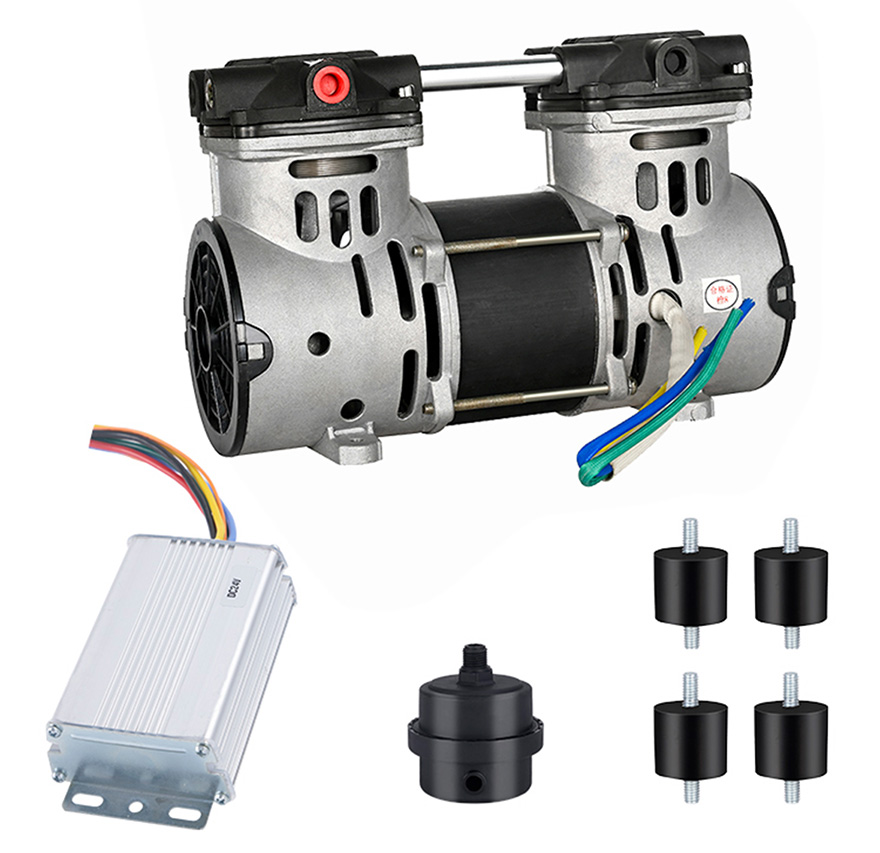

Product show:
