Oxygen Concentrator Compressor,Dental Silent Air Compressor, AC Air Compressor Pumps,DC Air Compressor Pumps,Oil-free Air Compressor, Vacuum Pump, Compressor Parts | Zhejiang Hongchuan Medical Technology Co.. Ltd.

Products

Name: HC1500D Oilless Air Pump

Type: HC1500D

Voltage: According to your requirements

Air flow rate: 250L/min

Pressure: 8 bar

Power: 1600 W

Noise: ≤68dB(A)

Speed: 1700rpm

Dimension: 380 *160*288 mm

Net weight: 12.6kg

With controller

Product details

Product parameters:

Model	HC1500D
Voltage	DC 24V / 48V / 110V/144V
Power	≤1500W
Air fiow rate	250 L/min@0 bar
	210 L/min@2 bar
	180 L/min@4 bar
	160 L/min@6 bar
	120 L/min @8 bar
Dimension	380 160288 mm
Installation size	127*298 mm
Rated speed	1700rpm
Noise	≤68dB(A)
Packing	1 pcs / carton case
Net weight	12.6 kg
Operating ambient air temperature	-5℃~40℃
Accessories	1x Controller ,4x Rubber Feet ,2x air Filter

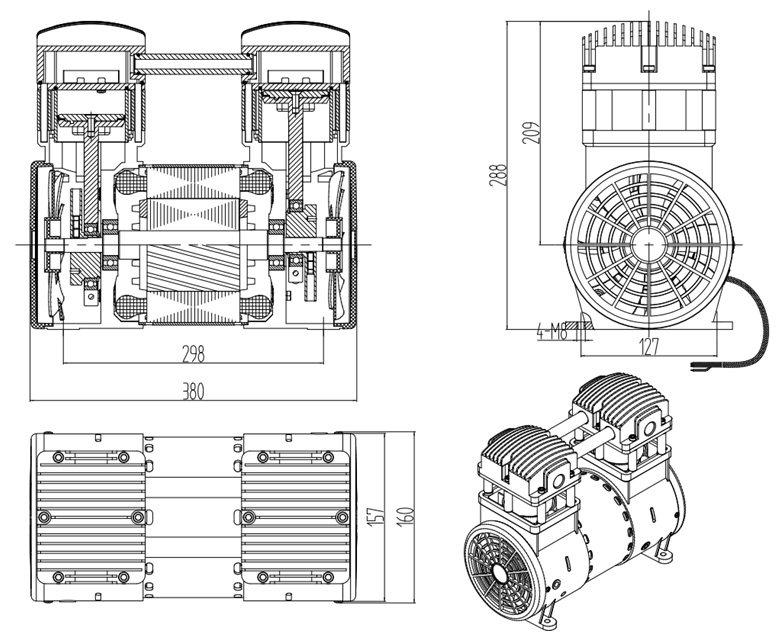

Drawing:

Product flow curve graph:

Product show:
