Location: Home > Products - AC Air Compressor Pump


Products

Name: HC550A1-40/7H AC Oillees Air Pump
Type: HC550A1-40/7H

Voltage: 110V 60Hz/220V 50Hz


Power: ≤550W



Air flow rate: 106L/mina@0bar



Noise:  ≤65dB(A)


Thermal protector: 135℃



Dimension: 275*130*189 mm



Net weight: 8.5 kg

Product details

Product parameters:

Model HC550A1-40/7H
Voltage 110V/220V
Power 550W
Air flow rate 106L/min@ 0bar
86L/min@ 2bar
66L/min@ 4bar
53L/min@ 6bar
40L/min@ 7bar
Noise ≤65dB(A)
Dimension 275*130*189mm
Installation size 223*89mm(M6X4)
Net weight 8.5 kg
Operating ambient air temperature -5℃~40℃

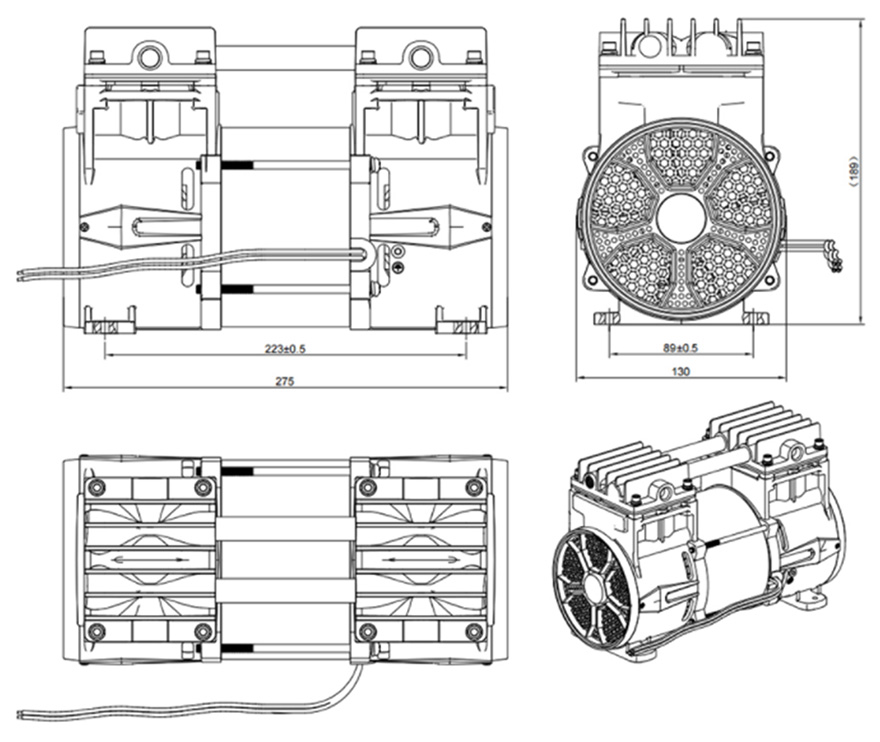

Drawing:

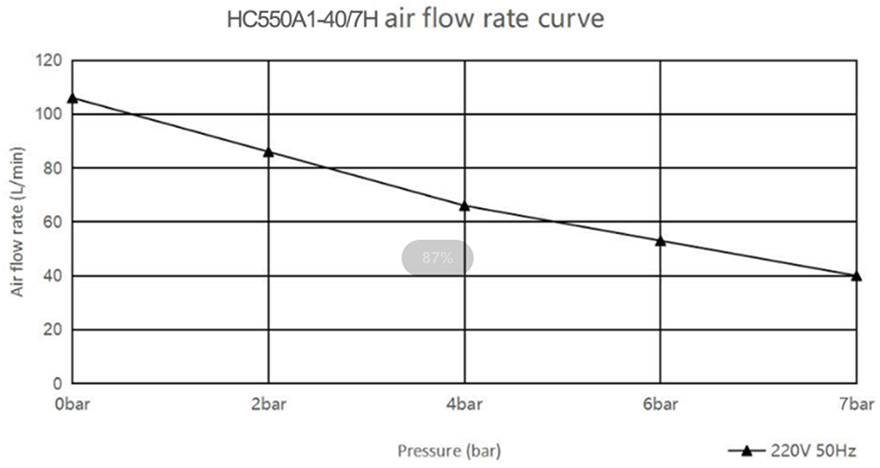

Product flow curve graph:

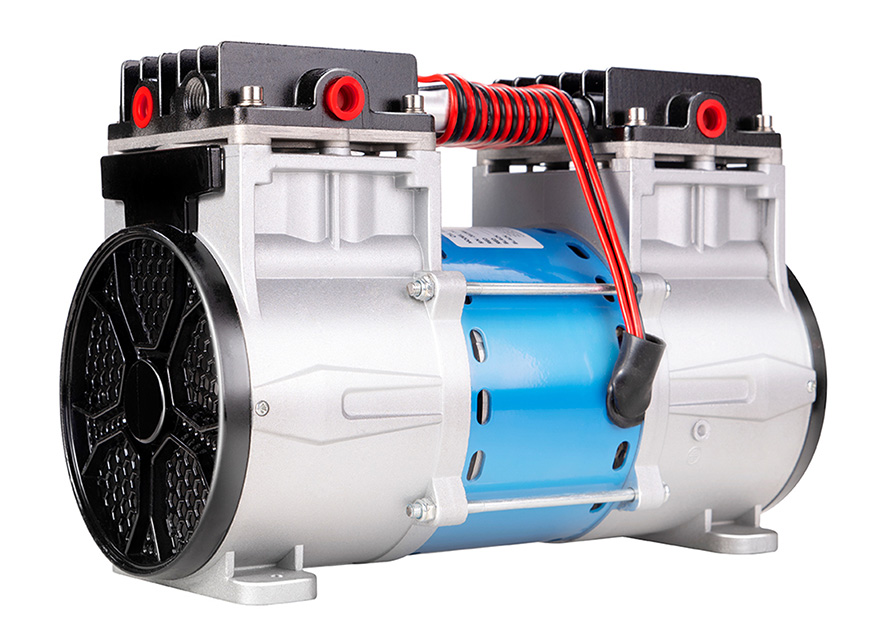

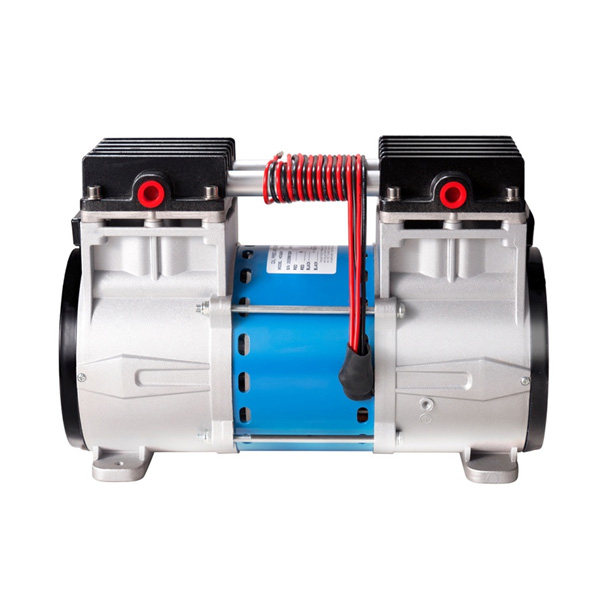

Product show:
