Name: HC280B Oilless Air Pump
Type: HC280B

Voltage: 110V 60Hz/220V 50Hz



Power: 370W


Rate working pressure :  7 bar



Air flow rate: 75 L/min



Noise: ≤59dB(A)


Speed: 1440rpm / 1700rpm


Thermal protection : 135



Dimension: 223*100*160 mm



Net weight: 6.0 kg

Product details

Product parameters:

Model  HC280B
Voltage  220V/110V
Power  370W
Air flow rate  75L/mina0 bar
 50L/min@2bar
 30L/min@4 bar
 21L/min@6 bar
 15L/mina7 bar
Noise  ≤55dB(A)
Dimension  223*100*160mm
Installation size  83*147mm
Net weight  60kg

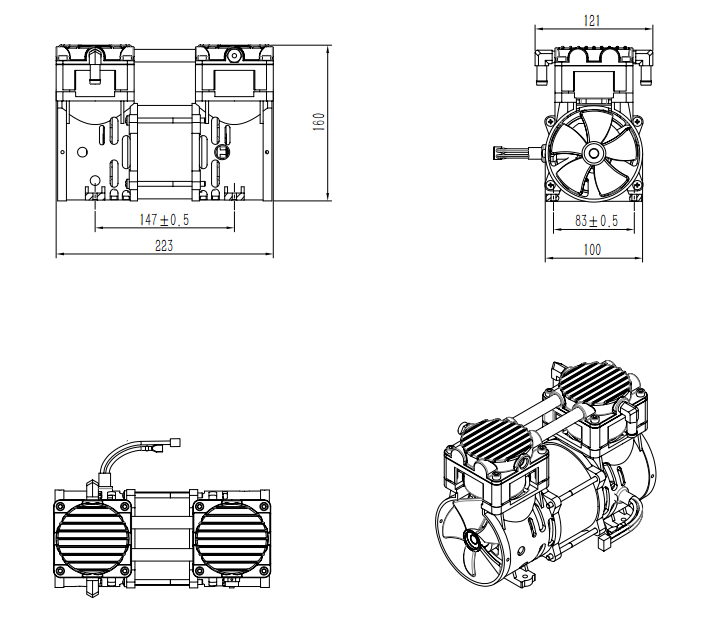

Drawing:

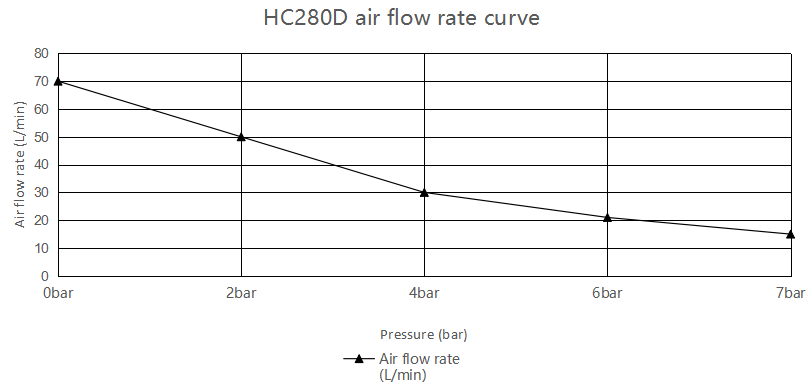

Product flow curve graph:

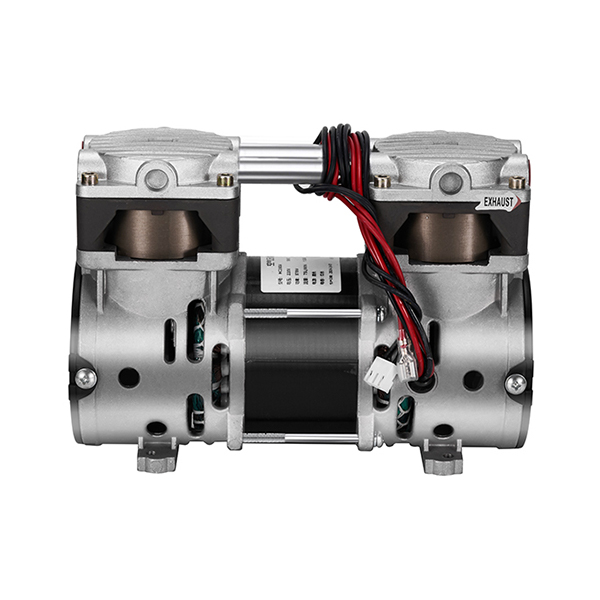

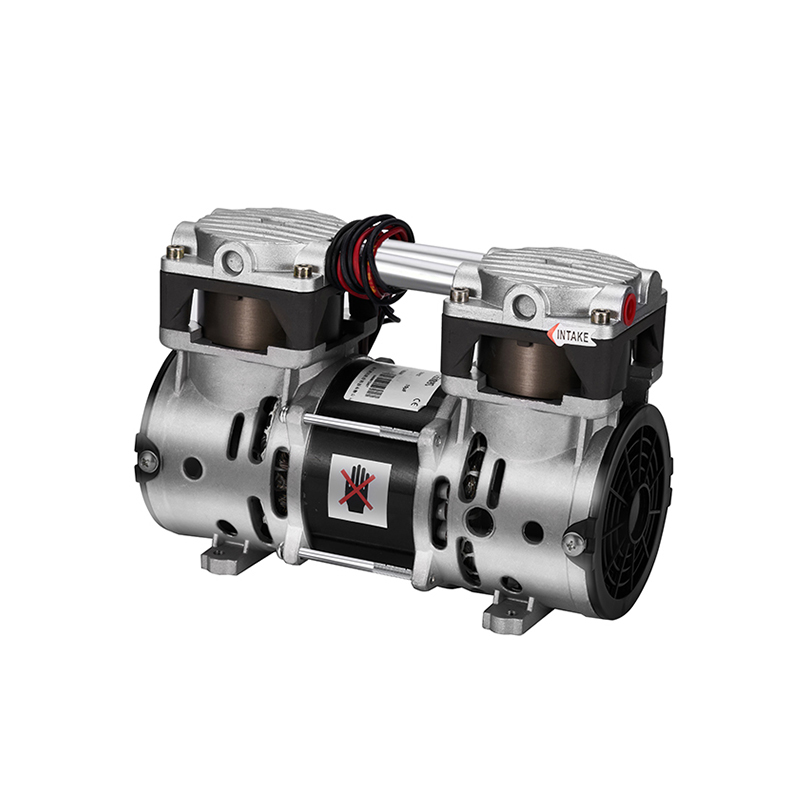

Product show:
