Name: HC750A2

Type: HC750A2 OIL FREE VACUUM PUMP

Voltage : 220V 50Hz/110V 60Hz ;

Vacuum Pressure: -92Kpa/-98Kpa

Power: 500 W ;

Noise : ≤51dB(A) ;

Speed: 1440rpm / 1700rpm ;

Temperature : -5℃-40℃ ;

Dimension : 271*128*216 mm ;

Net weight : 10.5 kg

Product details

More Specification
Voltage	220V 50Hz	220V 50Hz	110V 60Hz	110V 60Hz
Power	≤400W	≤400W	≤500W	≤500W
Vacuum flow rate	120 L/min@-92Kpa	60 L/min@-98Kpa	140 L/min@-92Kpa	70 L/min@-98Kpa
Speed	1400rpm	1400rpm	1700rpm	1700rpm
Noise	≤58dB(A)
Temperature	-5℃-40℃
Packing	2 pcs / carton case
Dimension	271128216 mm
Installation size	89*223 mm
Net Weight	10.5 kg
Accessories	1xcapacitor, 1x silencer, 4x rubber feet

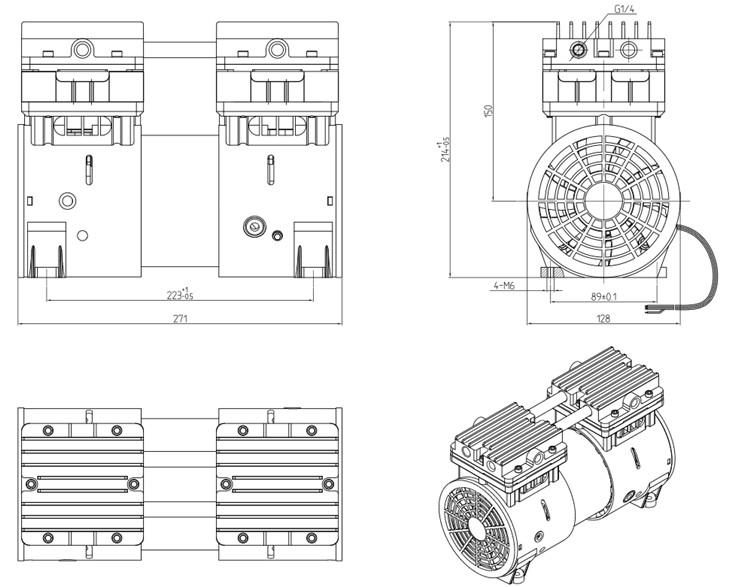

Drawing :

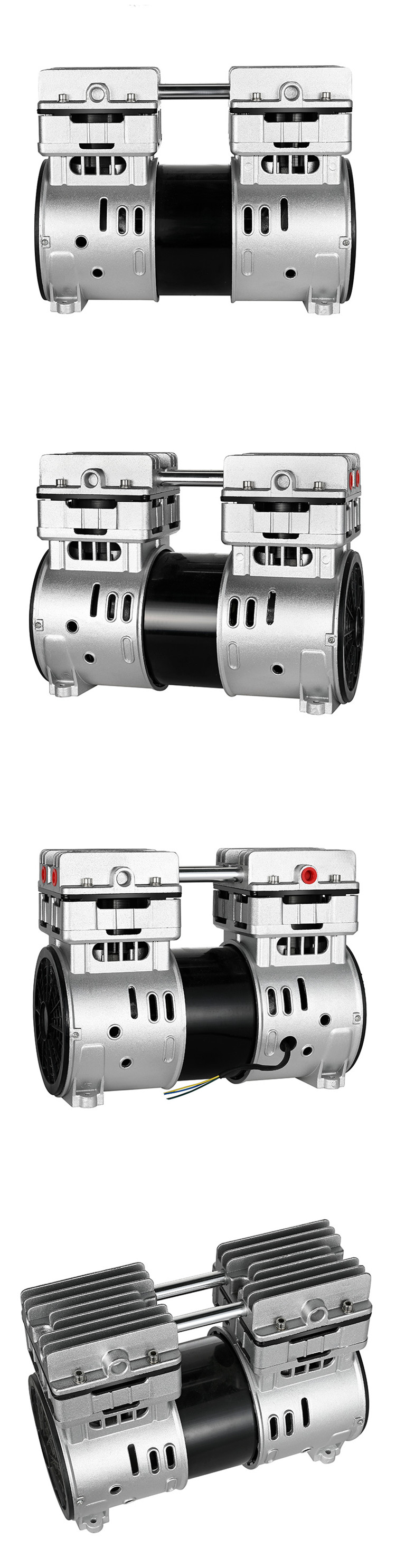

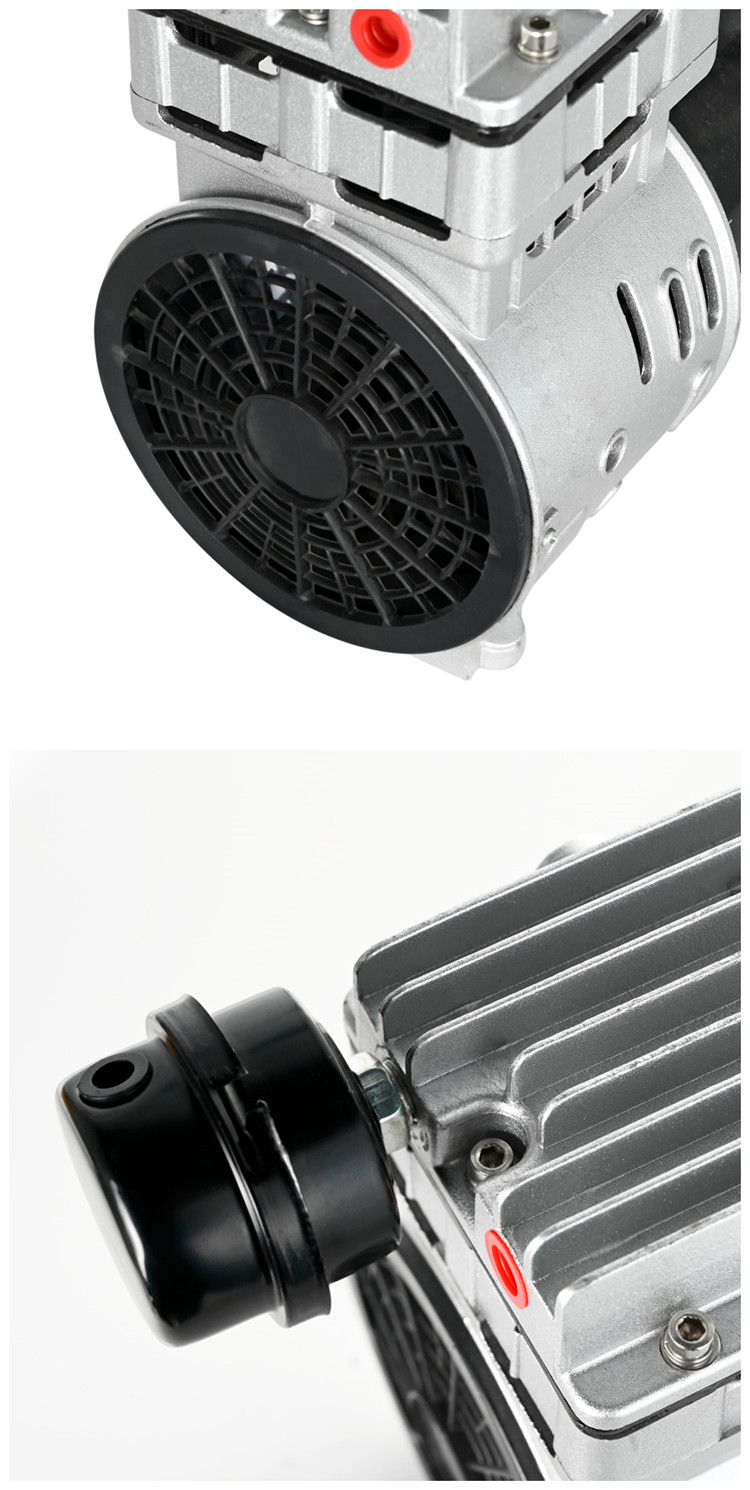

Product Show :
