Location: Home > Products - AC Air Compressor Pump


Products

Name: HC550A1-40/7M AC Oillees Air Pump
Type: HC550A1-40/7M

Voltage: 110V /220V



Power: 550 W


Air flow rate: 106L/min@0bar



Noise: ≤67dB(A)


Speed: 1440rpm / 1700rpm


Thermal protector: 135℃



Dimension:276*133*180 mm



Net weight: 10.2kg


Product details

Product parameters:

Model HC550A1-40/7M
Voltage 110V/220V
Power 550W
Air flow rate 106L/min@0bar
86L/min@ 2bar
66L/min@ 4bar
53L/min@6bar
40L/min@ 7bar
Noise ≤67dB(A)
Dimension 276*133*180mm
Installation size 223*89mm(M6X4)
Net weight 10.2 kg
Operating ambient air temperature -5℃~40℃

Drawing:

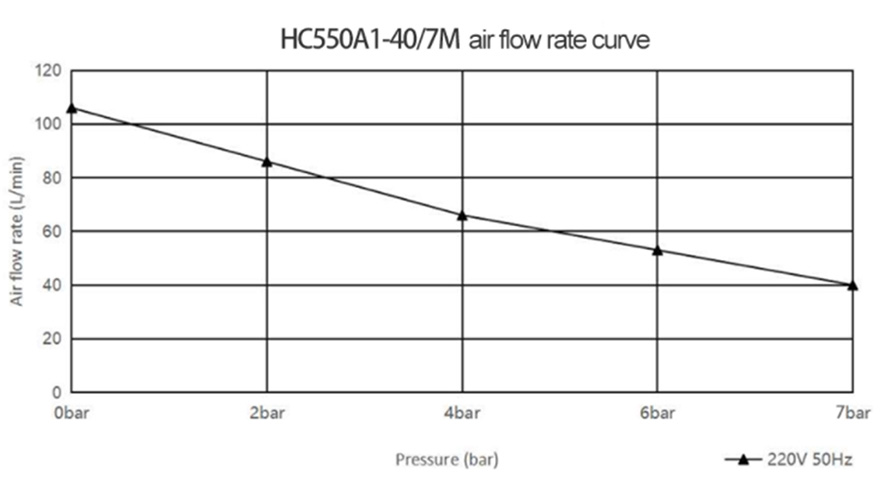

Product flow curve graph:

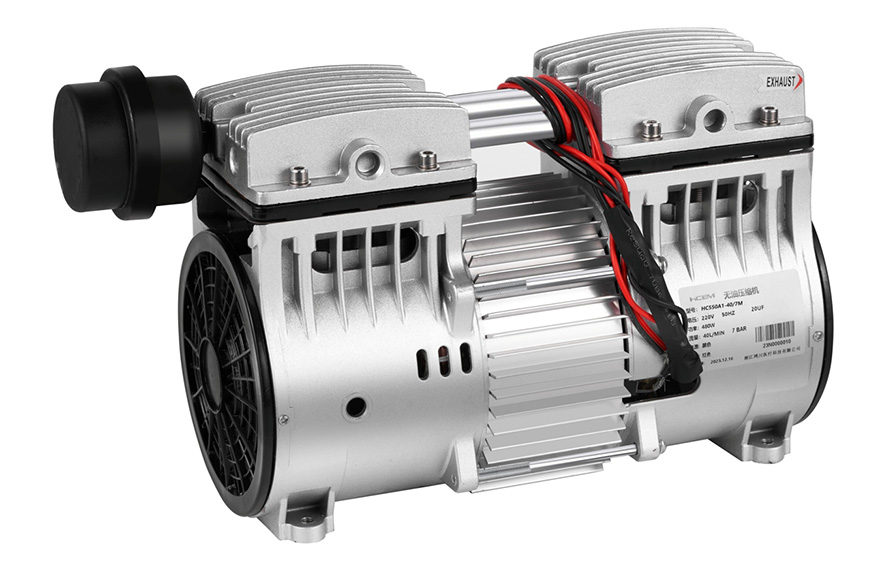

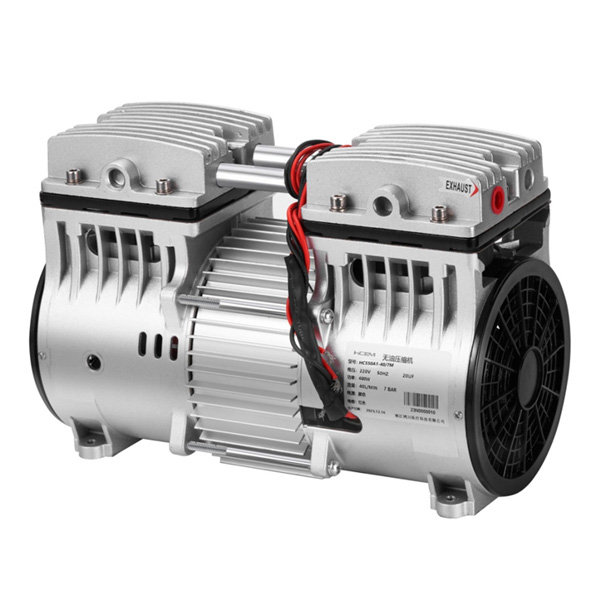

Product show:

Back
