Location: Home > Products - AC Air Compressor Pump


Products

Name: HC750A1-60/7M AC Oillees Air Pump
Type: HC750A1-60/7M

Voltage: 110V 60Hz/220V 50Hz



Power:  ≤750W


Air flow rate: 60L/min@7bar



Noise: ≤67dB(A)


Speed: 1440rpm / 1700rpm


Thermal protector: 135℃



Dimension:276*133*202 mm



Net weight: 10.8kg

Product details

Product parameters:

Model HC750A1-60/7M
Voltage 110V/220V
Power 750W
Air flow rate 130L/min@0bar
106L/min@ 2bar
88L/min@ 4bar
73L/min@6bar
60L/min@7bar
Noise ≤67dB(A)
Dimension 276*133*202mm
Installation size 223*89mm(M6X4)
Net weight 10.8 kg
Operating ambient air temperature -5℃~40℃

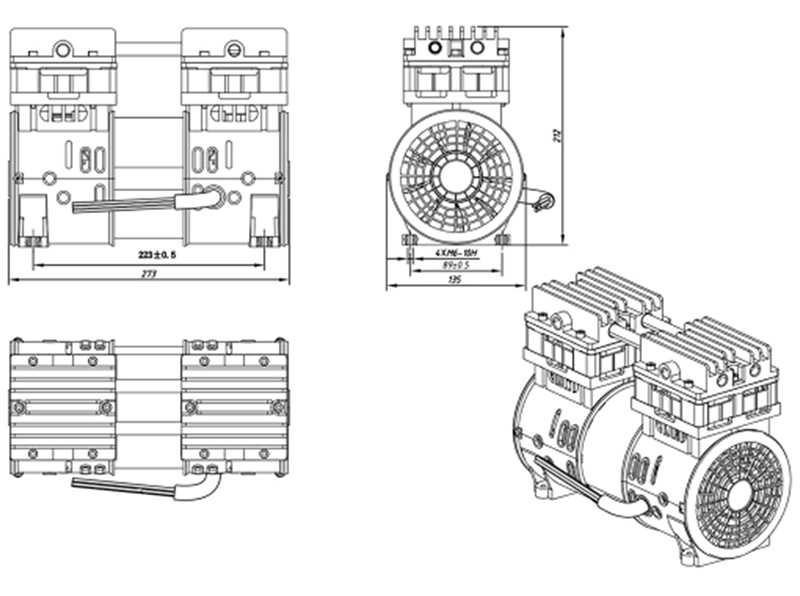

Drawing:

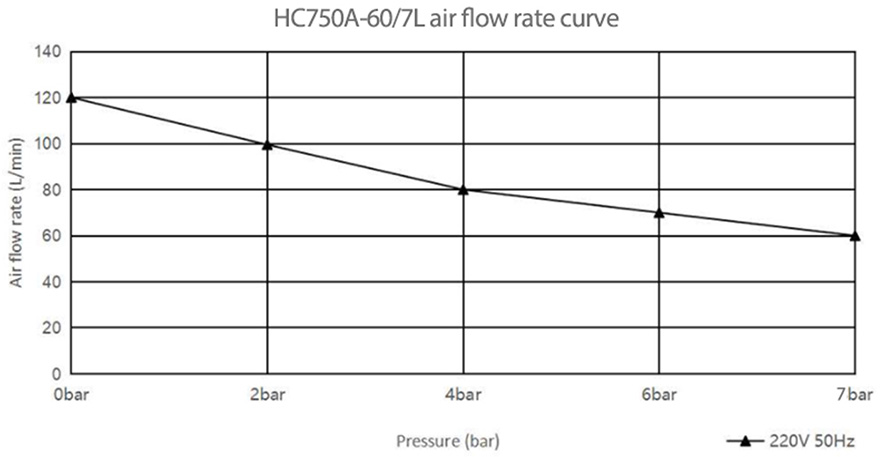

Product flow curve graph:

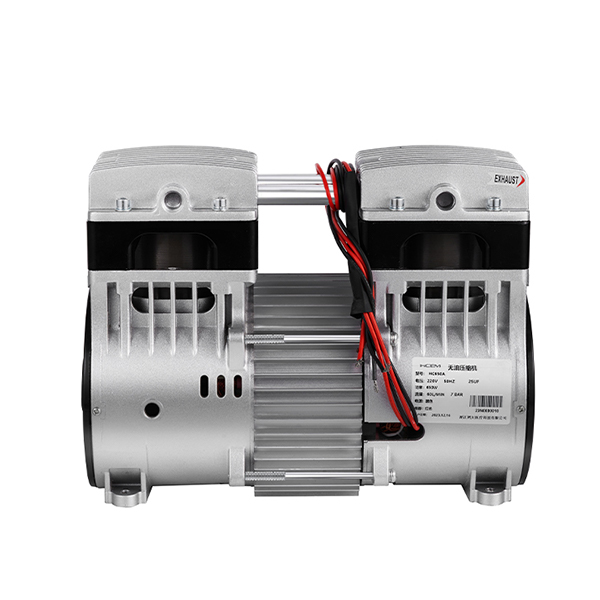

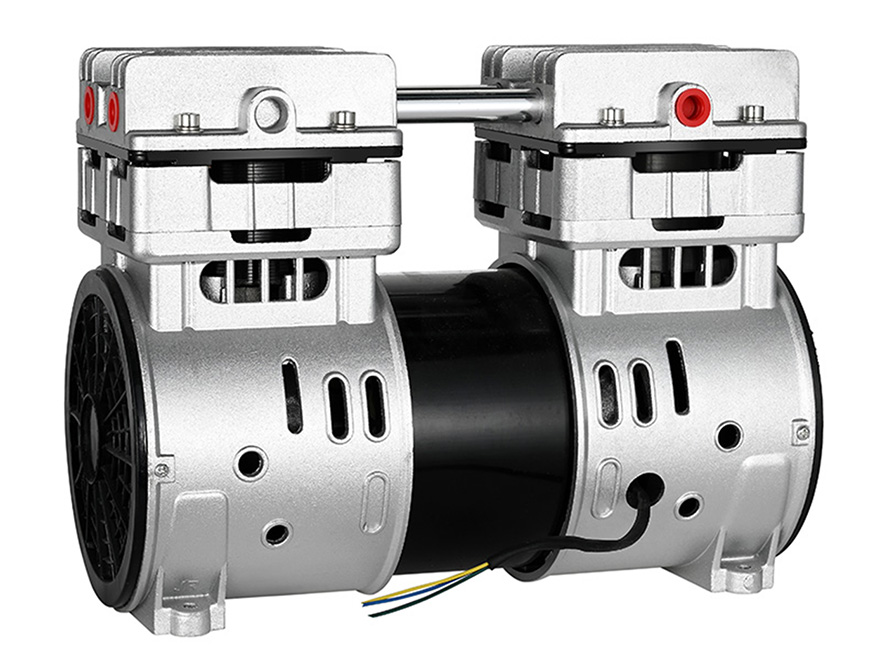

Product show:
