Name: HC750A1-60/7H AC Oillees Air Pump
Type: HC750A1-60/7H

Voltage: 220V/110V


Air flow rate: 130L/min@0bar


Power: 750 W


Noise: ≤65dB(A)


Dimension:275*130*206mm


Net weight: 9.6kg
Product details

Product parameters:

Model HC750A1-60/7H
Voltage 110V/220V
Power 750W
Air flow rate 130L/min@0 bar
106L/min@2 bar
88L/min@4 bar
73L/min@6 bar
60L/min@7bar
Noise ≤65dB(A)
Dimension 275*130*206mm
Installation size 223*89mm(M6X4)
Net weight 9.6 kg
Operating ambient air temperature -5℃~40℃

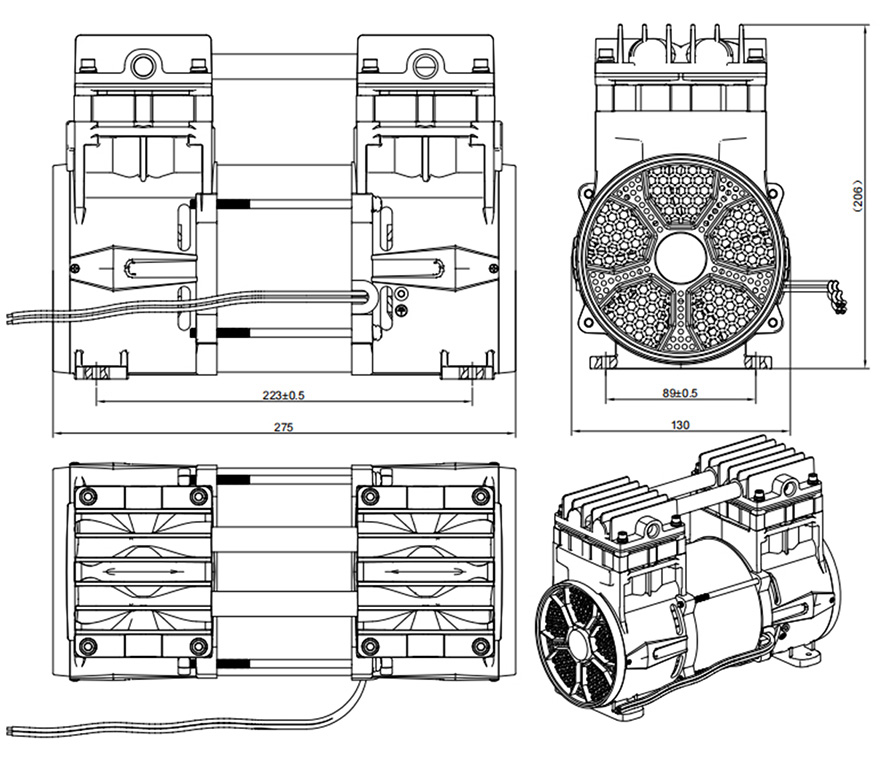

Drawing:

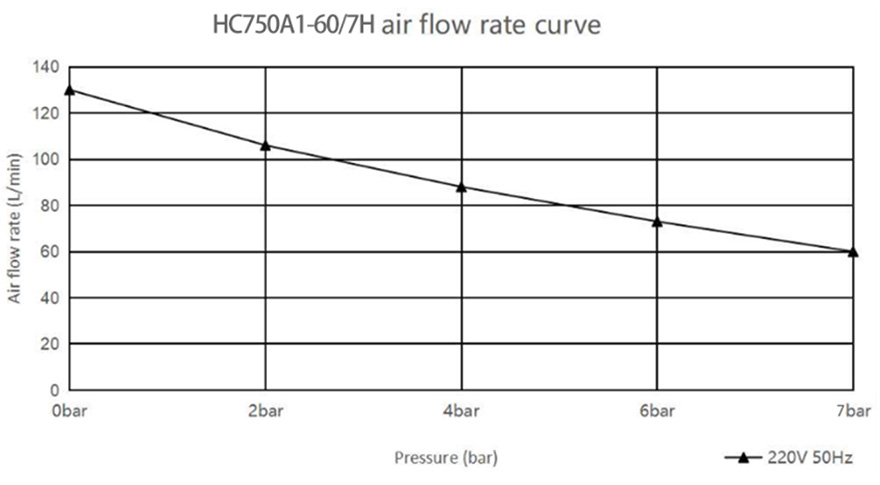

Product flow curve graph:

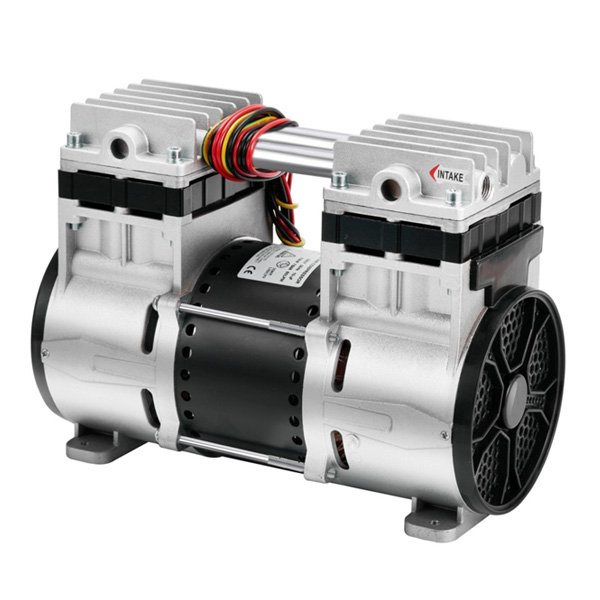

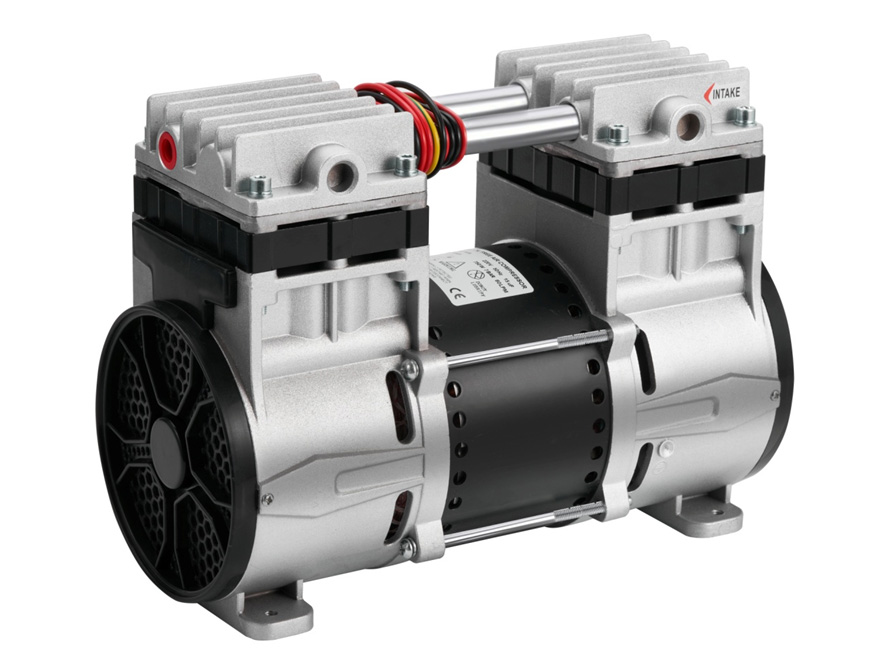

Product show:
